Pyrophyllite grinding mill
China No.1 Technology
- Our New type: Combined grinding wheel bracket – Demonstration of assembly
- Our New – type: Rhombic Spindle
- Easy to disassemble.
- Low cost of accessories.
- Spindle nut No loosening, No thread slipping, No falling off.
- Low cost, High reliability
Pyrophyllite grinding mill description:
First off, Pyrophyllite grinding mill is a purpose-built industrial grinding machine made just for processing pyrophyllite ore. Its main job is to shrink pyrophyllite particles down to fit the exact fineness needs of different downstream uses. You’ll typically find it in three main setups: Raymond mill, vertical mill, or ultrafine mill. What’s great about these models is that you can tweak the fineness easily, they run super steadily, and they’re really efficient when working with soft pyrophyllite material.
| Mesh (D97) | 319 Type | |
| Output (kg/h) | Cunsumption of Electricity (kWh/t) | |
| 325 | 10000~12000 | 22-26 |
| 400 | 9000~9500 | 26-30 |
| 600 | 6000~7500 | 31-36 |
| 800 | 5000~6500 | 46-53 |
| 1250 | / | / |
| 377-407 kW | ||
| Mesh (D97) | 219 Type 28 rollers or 26 Roller Price are the same | 309 Type 32 Roller or 28 Roller price are the same | 1160 Type 32rollers or 34rollers price are the same | |||
| Output (kg/h) | Cunsumption of Electricity (kWh/t) | Output (kg/h) | Cunsumption of Electricity (kWh/t) | Output (kg/h) | Cunsumption of Electricity (kWh/t) | |
| 400 | 5000~6000 | 29-38 | 9000~9500 | 26-30 | ||
| 800 | 4000~4500 | 45-53 | 5500~6500 | 43-48 | 6500~7500 | 41-48 |
| 1250 | 2300~3000 | 65-70 | 3500~4000 | 66-72 | 4500~5200 | 59-75 |
| 1500 | 1600~2300 | 83-90 | 2500~3000 | 85-92 | 3200~4000 | 78-90 |
| 2000 | 1100~1600 | 125-133 | 1500~2000 | 125-133 | 2300~2800 | 110-134 |
| 2500 | 900~1300 | 138-145 | 1100~1500 | 138-146 | 1500~1800 | 160-201 |
| 3000 | / | / | 1000~1200 | 185-192 | / | / |
| Total Power | 237 kW | 340-387 kW | 372-457 kW | |||
- Drawing line: As shown in below picture：
- Dig a hole: The SHM-309 foundation drawing showed size : length:3.65M,wide:3M，highly:0.5M.When Dig the hole need to have reservation some size.
Suggest size: length:4M，wide:3.5M.
- Put reinforced:Arrangement of two layers of rebar in the pit.
The size of reinforced:DiameterΦ16，spacing:20cm，Tie the rebar tightly with steel wire.
- Set mould: Enclose the square pit with template and height is the same as the ground.
- Welded: Accurately arrange the position of the steel mould and motor seat.Put 6 rebar (Φ 24) inside of each steel die (2 steel mould); Four corners of the motor base stand up and 1 rebar(Φ 18). Each rebar is 50 cm higher than the horizontal plane.
- First pouring concrete: The height is the same as the floor.
- Placing main machine steel die: The next day, Placing the main machine steel mould according to the size of the basic drawing.
- Weld: After the steel mould is put in place and make sure all sizes are correct. Weld the steel mould with 6 rebars (Φ24) together.
- The second pouring concrete. When pouring, the first steel mould is pouring half, and then poured another half of the steel mould, then back to pouring the first steel mould. It ensures that the size comparison does not deviate.Attention
- A single steel mould must be horizontal, at the same time, two steel mould dies must be horizontal.
- The pitch-row of the foundation bolts of two steel mould must be accurate. SHM-309 roller mill is 2045mm.
- Two steel mould cannot be misplaced.（It can be corrected by diagonal lines between steel dies, the length of diagonal must be equal.）
- The center line between steel mould and motor seat must be accurate. SHM-309 roller mill is 1900mm.
- After the steel mould is put in place and make sure all sizes are correct, the two steel mould must be welded and fixed with three channels steel before pouring concrete. Make sure the steel mould is not displacement and dimension not error during pouring. (This step must be done.)
What is Pyrophyllite grinding mill?
Simply put, this is a specialized powder-making machine designed specifically for pyrophyllite, a common soft aluminosilicate mineral. It takes raw pyrophyllite ore, crushes and grinds it into finished powder with a huge range of fineness levels—from basic coarse powder all the way up to ultra-fine particles. This lets it fit production needs across tons of different industrial sectors.
What is the Pyrophyllite grinding mill process?
The standard workflow goes like this: First, we take those big raw pyrophyllite blocks and pre-crush them down to a size that fits the mill’s feed requirements. Next, we feed that pre-crushed material into the Pyrophyllite grinding mill to get it ground up. After grinding, a separator sorts the powder: any powder that meets the fineness standard gets collected and packaged, while the too-coarse material loops back into the mill to be ground again.
What are the uses of Pyrophyllite grinding mill?
This mill turns pyrophyllite into standardized powder that works for a ton of different industries. The finished powder pops up everywhere: in ceramic production, refractory materials, papermaking, as a filler for rubber and paint, even in cosmetics, pesticide additives, pharmaceutical excipients, and as a base material for artificial gemstones. It can adapt to all kinds of different fineness requirements for these uses.
What is the best Pyrophyllite grinding mill process?
There’s no one-size-fits-all best process here—it all depends on your target output and how fine your finished powder needs to be. If you’re making 80 to 325 mesh powder with small to medium production levels, the closed-circuit Raymond grinding process is the most budget-friendly and effective pick. For ultra-fine powders finer than 325 mesh or large-scale manufacturing, a vertical ultrafine grinding process will give you better efficiency and a higher quality finished product.
Pyrophyllite grinding mill process Application:
The grinding process from the Pyrophyllite grinding mill is used in full industrial pyrophyllite processing lines to make powders in all sorts of specifications. Coarse 80 to 200 mesh powder is great for refractory materials and ceramic blank production. 325 to 1250 mesh powder works perfectly as a filler for papermaking, paint, and rubber products. Anything finer than 1250 mesh is perfect for cosmetics and pharmaceutical industries.
Pyrophyllite grinding mill Processing Technology:
The two most common processing techs are dry grinding and wet grinding. Dry grinding is the most popular option overall—it has low production costs and makes packaging and transportation way easier down the line. Wet grinding is mostly used for making high-purity ultra-fine pyrophyllite powder; it can create better particle shapes and higher purity, but it does come with higher production costs.
Guide to Pyrophyllite grinding mill: Mills, Tips, and Uses
When you’re picking a Pyrophyllite grinding mill, you should base your choice on your output needs and fineness requirements. A Raymond mill works well for small to medium production of 80 to 325 mesh powder, a vertical mill is ideal for large-scale runs, and an ultrafine mill is the way to go for super fine powder. A few practical pro tips: swap out worn grinding parts on a regular basis, keep an eye on the raw material’s moisture level, and control the feeding speed to keep the mill running smoothly. At the end of the day, this machine processes pyrophyllite powder for all kinds of downstream industries.

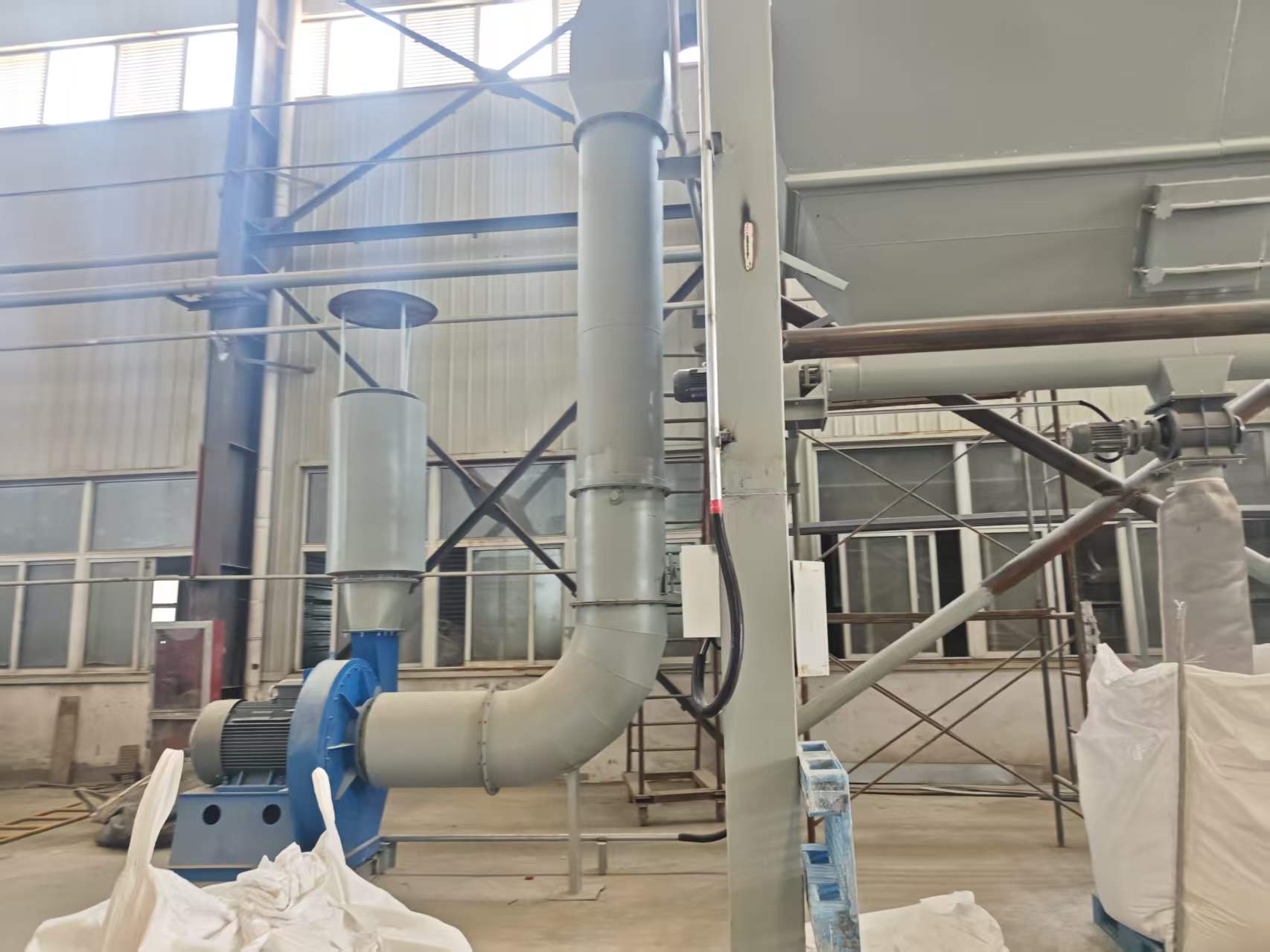

What is the auxiliary equipment in a Pyrophyllite grinding mill plant?
You’ll find a few standard pieces of auxiliary equipment here: jaw crushers or impact crushers for pre-crushing those big raw pyrophyllite blocks, a vibrating feeder to keep feeding material evenly, a powder separator to sort the ground product, a pulse dust collector to keep dust contained and meet environmental standards, belt conveyors to move material between steps, and an automatic packaging machine for the finished powder.
How to optimize Pyrophyllite grinding mill grinding efficiency?
There are a few straightforward ways to boost efficiency. First, keep an eye on the raw material’s moisture—too much moisture will make the material stick together and cause clogs. Second, feed material steadily and at a rate that matches the mill’s maximum handling capacity. Third, check and replace worn grinding rollers and rings regularly to make sure the mill has enough grinding force. Finally, adjust the separator’s speed correctly to hit your target fineness and cut down on unnecessary energy use.
